Products

MR-compatible medical devices

Our guidewire:

enables interventions in MRI with high MRI visibility and MR-conditional safety label.

SPECIFICATIONS

  • CE-marked (class III)
  • MR-conditional

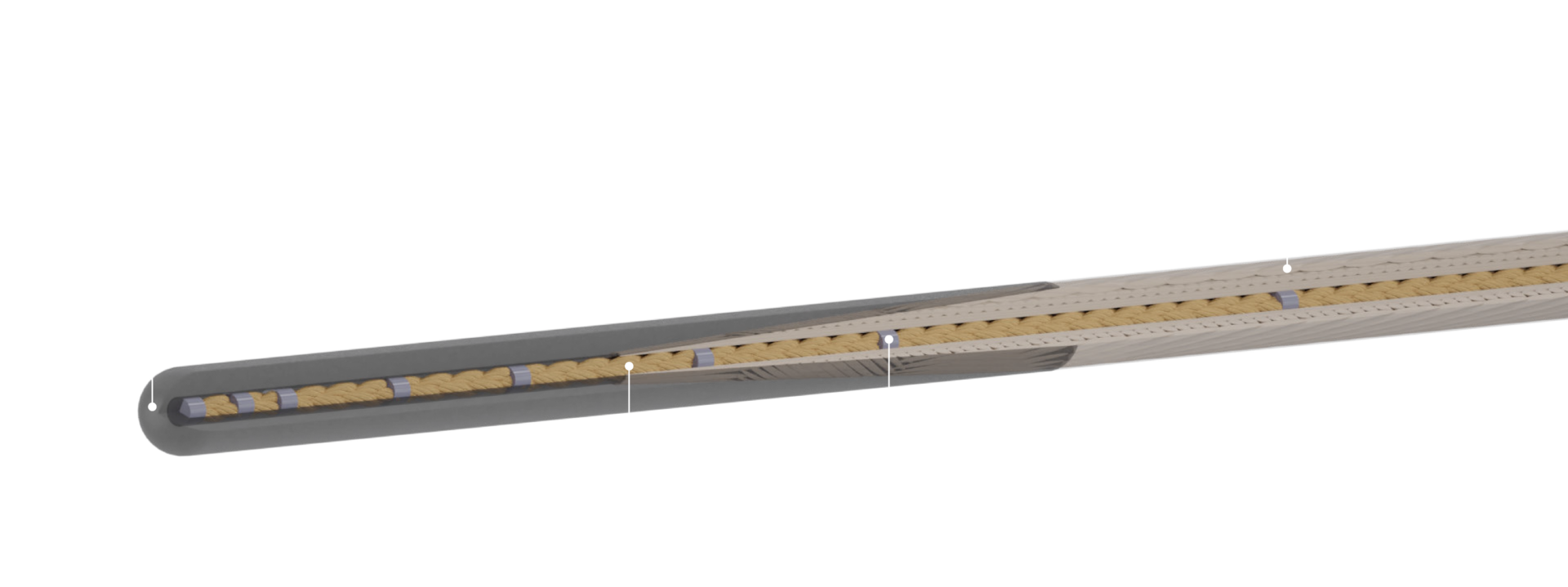

  • distinct tip markers and discrete markers throughout the length
  • available in 0.035” or 0.025″ and 150, 180 or 270 cm
  • non-breakable corefibres
  • good steerability, high tip flexibility
  • non-conductive, non-breakable

SAFETY INFORMATION

A patient with this device can be safely scanned in an MR system meeting the following conditions:

  • static magnetic field of 1,5 Tesla and 3 Tesla, with
  • maximum spatial field gradient of 12,900 G/cm (12 T/m)
  • maximum Force product of 229,000,000 G2/cm (229 T2/m)
  • theoretically estimated maximum whole body average (WBA) specific absorption rate (SAR) of
    2 W/kg (Normal Operating Mode)
    4 W/kg (First Level Controlled Operating Mode)
